Well thought I would post some sort of update, and yes i know this thread is worthless with out pictures, but i know Dan has been working flat out and hasn't probably had a minute to himself. Anyway long and short is supercharger is now installed and the car is running (hope that is still the case Dan?) apparently the install was fairly straight forward but will leave dan to explain.
The car was dynoed before any work took place. Before I had the car picked up I had the Lotus remap carried out to the car to reduce the cam switch over, and i don't know if this had anything to do with it but when dynoed, Dan reported a marked Dip of torque at the cam switch over point. The car only produced 176bhp on the rolling road which is slightly less than i expected but no faults were evident.
So next thing is to get it back up on the rollers on Monday morning to see what the new figures are, and after that it will be transported back up to me on monday afternoon. Fingers crossed all goes well over the next few days.
The car was dynoed before any work took place. Before I had the car picked up I had the Lotus remap carried out to the car to reduce the cam switch over, and i don't know if this had anything to do with it but when dynoed, Dan reported a marked Dip of torque at the cam switch over point. The car only produced 176bhp on the rolling road which is slightly less than i expected but no faults were evident.
So next thing is to get it back up on the rollers on Monday morning to see what the new figures are, and after that it will be transported back up to me on monday afternoon. Fingers crossed all goes well over the next few days.
Lotus Evora
Mercedes E63 Wagon
Range Rover
Mercedes E63 Wagon
Range Rover
Re: Project - Supercharger
Dan kindly got some photos and info to me last night so though i would post up what he sent me
Hi Euan,
As promised here are the photos and a few comments on the install.
Firstly, I have to say the kit is very good and I am impressed. I will certainly be looking into importing these kits I reckon.
There are a couple of things I am not totally happy with but it would take a bit of time to come up with a solution.
The kit is obviouly designed originally for the Elise so the charcoal canister bracket in the kit doesn't really work properly in the Exige. I manged to relocate it and get everything to fit but not happy with the vacuum lines running where they are. It isn't as neat as I would like. (things like that really bother me ). To sort it properly the vacuum lines and charcoal canister wiring need extending so the canister can be mounted on the other side of the roll bar out of sight. That will make the install much neater and its something I will hapilly do for you FOC once I have developed a solution.
The other thing I would like to do is make a cover to replace the existing injector cover that is larger so it covers the supercharger completely. Not only will this make the install neater, it could be handy for European countries where modifications aren't strictly legal and concealing them is preferable.
The only other thing I'm not happy with its the bit of rubber pipe supplied in the kit to extend the oil drain pipe from the cam cover. It just doesn't look very nice. unfortunately I didnt have any silicone hose the right diameter so had to use it. Something that I will change for you in the future.
One thing I must mention is that if you ever take the car into the dealers for any work you must give them specific instructions not to do any updates on the ECU as this could bugger up your map.
Right, now the pictures.

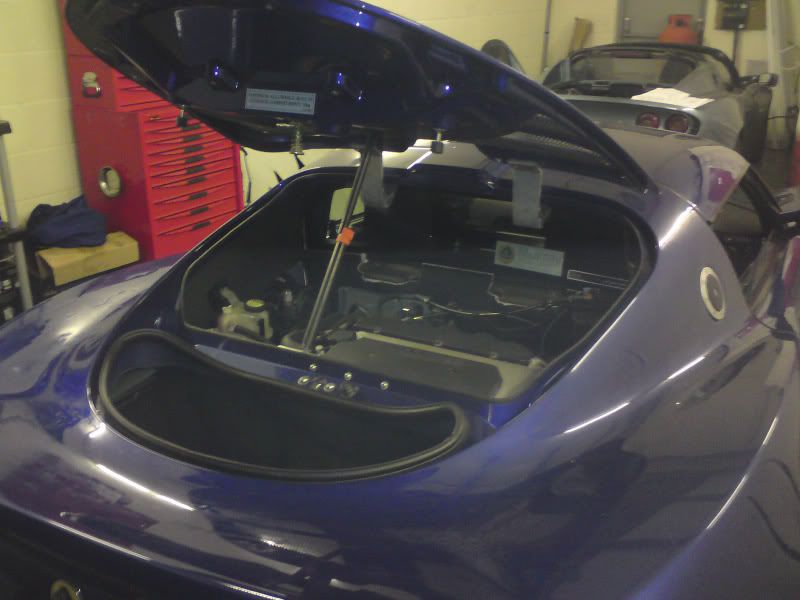

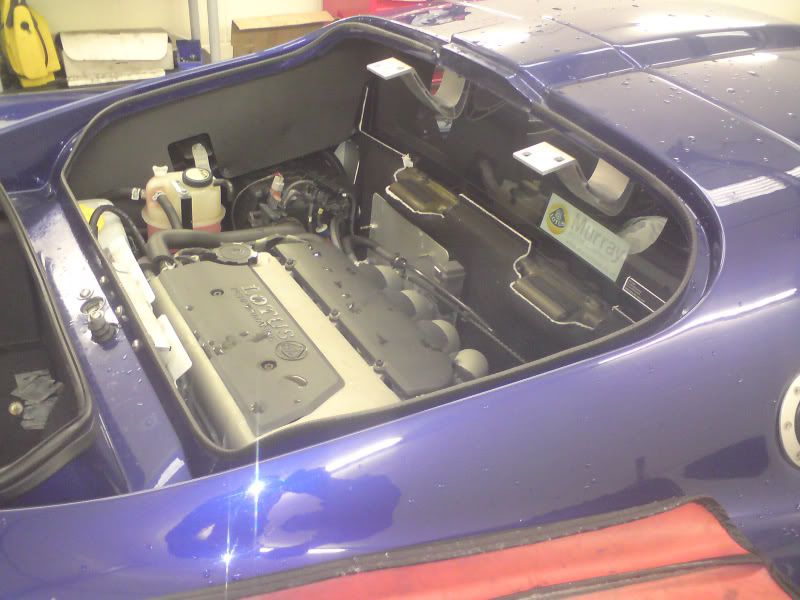

Engine cover off. As it was.

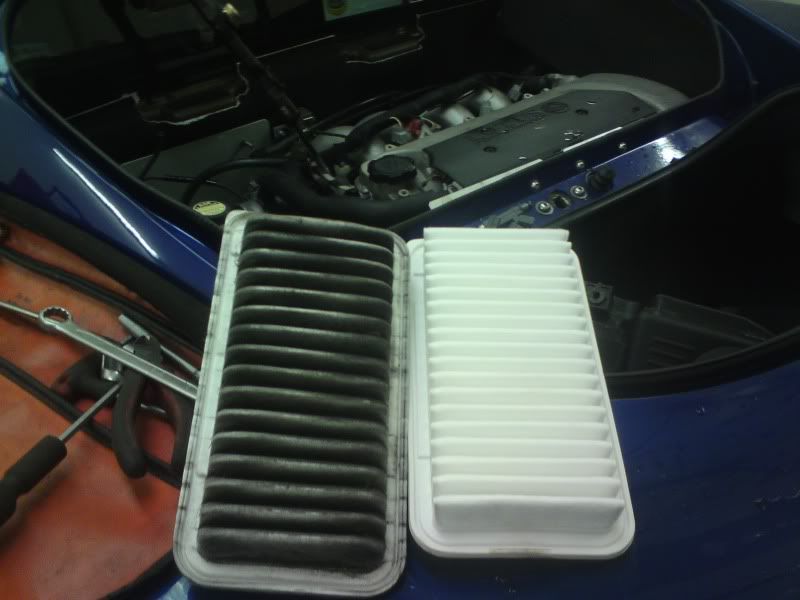

New air filter needed methinks! New one on the right btw.
Inlet manifold and associated gubbins removed

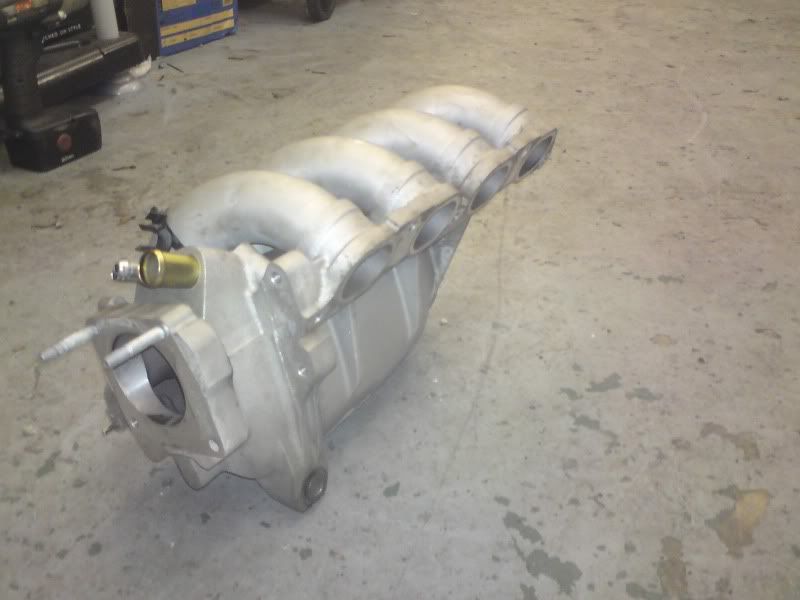

The old inlet manifold

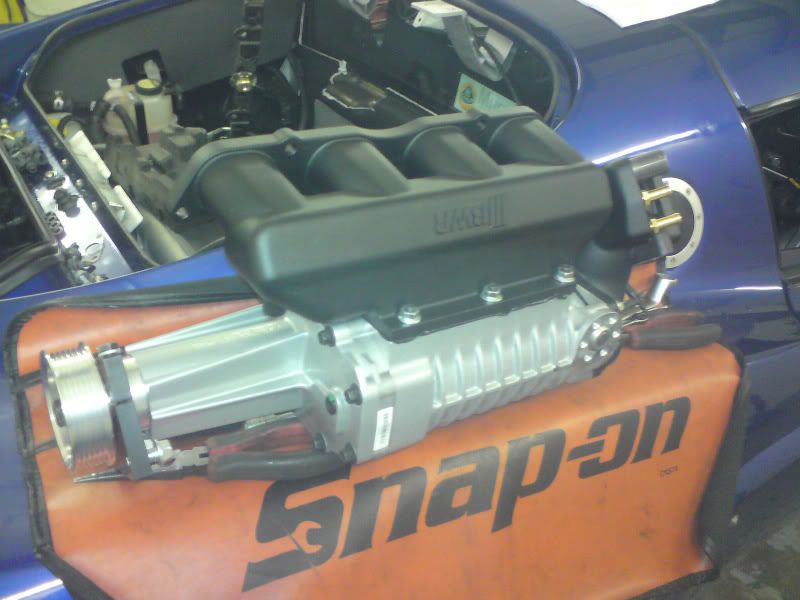

New supercharger and manifold assembly, ready to install

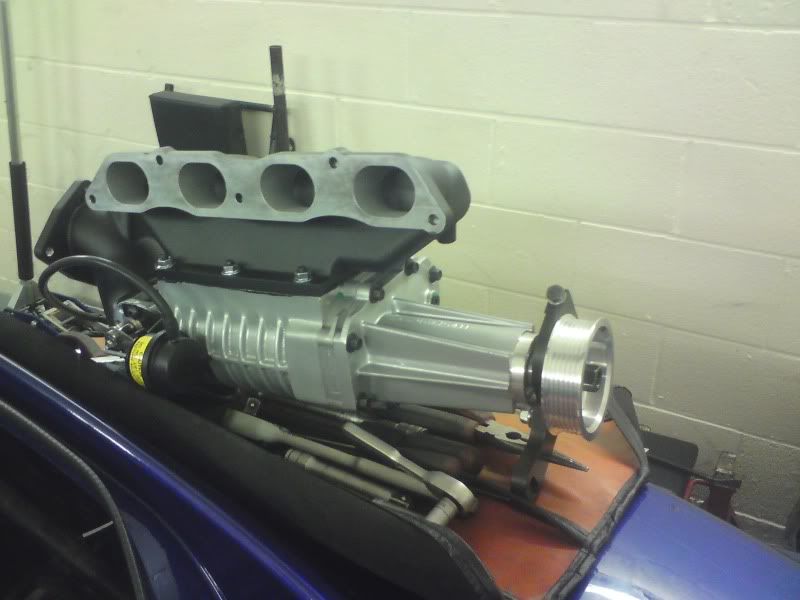

And again from the other side

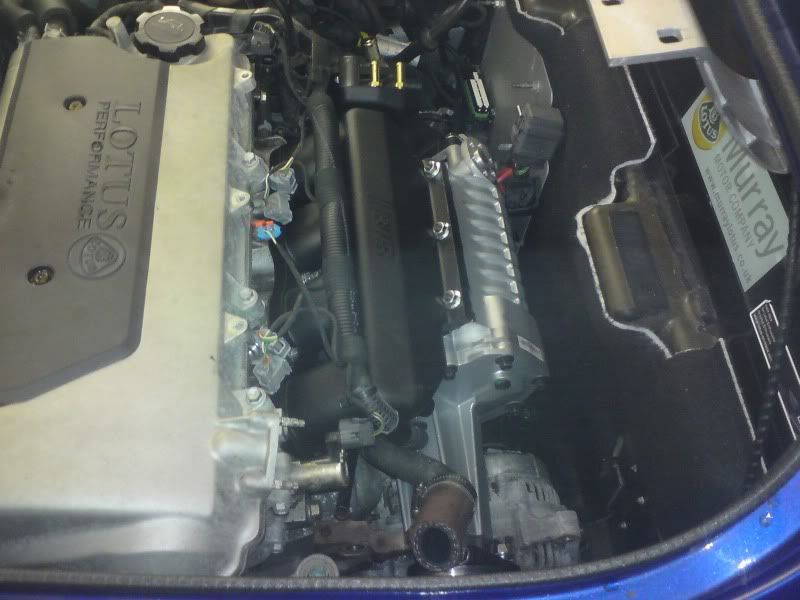

Supercharger bolted in place.
Completed install
And again from another angle

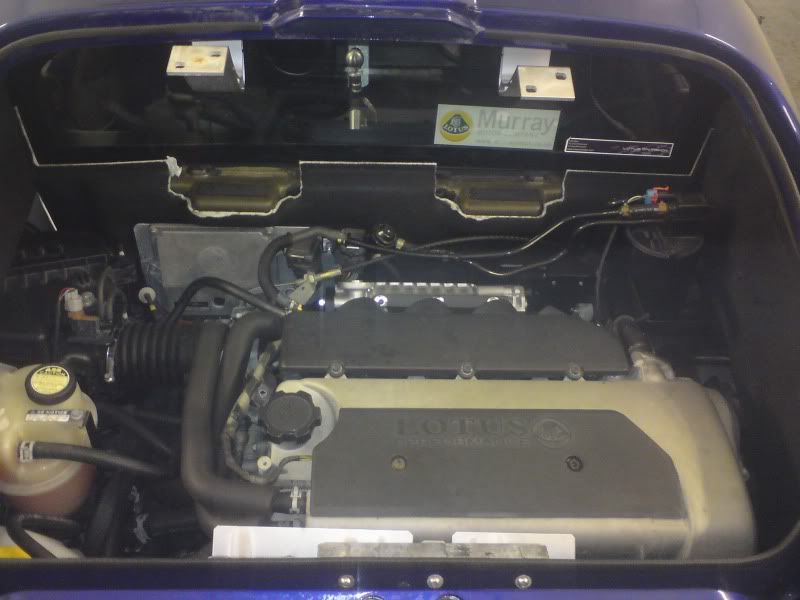

With the engine cover on. All finished!
Makes it look really easy doesn't it! There are 100s of small steps I didn't picture like modifying the diptick tube and oil drain pipes, wiring new connectors for the different injectors, etc, etc. Its a good 12 hours for the install. Can probably that down to about 10 if I did a few.
The car is being dynoed this morning and made just under 240bhp, so that is a massive 60bhp increase from the first run, not to mention a lot more torque. . Absolutely delighted and now can't wait to get the car back home to get a drive of it. Must thank Dan for all his hard work and being willing to take on a bit of an unknown project, but the results speak for themselves
Hi Euan,
As promised here are the photos and a few comments on the install.
Firstly, I have to say the kit is very good and I am impressed. I will certainly be looking into importing these kits I reckon.
There are a couple of things I am not totally happy with but it would take a bit of time to come up with a solution.
The kit is obviouly designed originally for the Elise so the charcoal canister bracket in the kit doesn't really work properly in the Exige. I manged to relocate it and get everything to fit but not happy with the vacuum lines running where they are. It isn't as neat as I would like. (things like that really bother me ). To sort it properly the vacuum lines and charcoal canister wiring need extending so the canister can be mounted on the other side of the roll bar out of sight. That will make the install much neater and its something I will hapilly do for you FOC once I have developed a solution.
The other thing I would like to do is make a cover to replace the existing injector cover that is larger so it covers the supercharger completely. Not only will this make the install neater, it could be handy for European countries where modifications aren't strictly legal and concealing them is preferable.
The only other thing I'm not happy with its the bit of rubber pipe supplied in the kit to extend the oil drain pipe from the cam cover. It just doesn't look very nice. unfortunately I didnt have any silicone hose the right diameter so had to use it. Something that I will change for you in the future.
One thing I must mention is that if you ever take the car into the dealers for any work you must give them specific instructions not to do any updates on the ECU as this could bugger up your map.
Right, now the pictures.
Engine cover off. As it was.
New air filter needed methinks! New one on the right btw.
Inlet manifold and associated gubbins removed
The old inlet manifold
New supercharger and manifold assembly, ready to install
And again from the other side
Supercharger bolted in place.
Completed install
And again from another angle
With the engine cover on. All finished!
Makes it look really easy doesn't it! There are 100s of small steps I didn't picture like modifying the diptick tube and oil drain pipes, wiring new connectors for the different injectors, etc, etc. Its a good 12 hours for the install. Can probably that down to about 10 if I did a few.
The car is being dynoed this morning and made just under 240bhp, so that is a massive 60bhp increase from the first run, not to mention a lot more torque. . Absolutely delighted and now can't wait to get the car back home to get a drive of it. Must thank Dan for all his hard work and being willing to take on a bit of an unknown project, but the results speak for themselves
Lotus Evora
Mercedes E63 Wagon
Range Rover
Mercedes E63 Wagon
Range Rover
Re: Project - Supercharger
Good to see that Dan is getting the hang of Elises/Exiges.
Also that owners are going for different type conversions, the more the merrier. Looks as if Dan did a great job, bet Kenny is counting his pennies at the moment.
tut
Also that owners are going for different type conversions, the more the merrier. Looks as if Dan did a great job, bet Kenny is counting his pennies at the moment.
tut
Re: Project - Supercharger

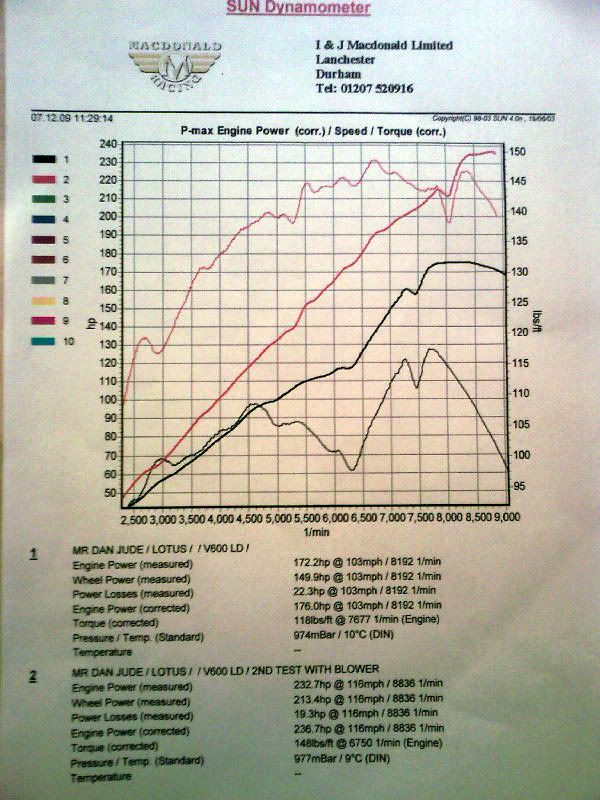

Before and after comparison of dyno plots. Same dyno, same conditions etc. 60.7 bhp increase but just look at the shift in the torque curve. Car feels great to drive.
