Instructions for fitting blisteins to s1

[vet111s]

Anyone have the fitting instructions for fitting the blisteins to an s1 that they could scan and email to me?

Thanks in advance

Ali

[Rich H]

Jack up
Remove wheel
Unbolt old shock/spring
Undo bolts that hold bracket to car
Install new bracket using locktite on bolts
Install new shock spring
Use new bolts and nylock nuts

I don't think there is much to it TBH!

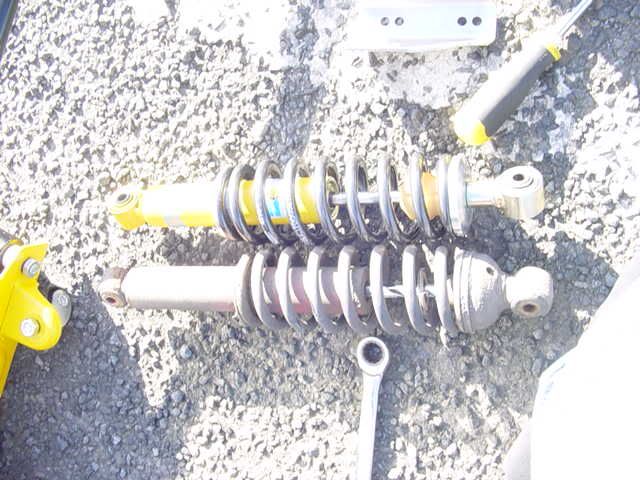

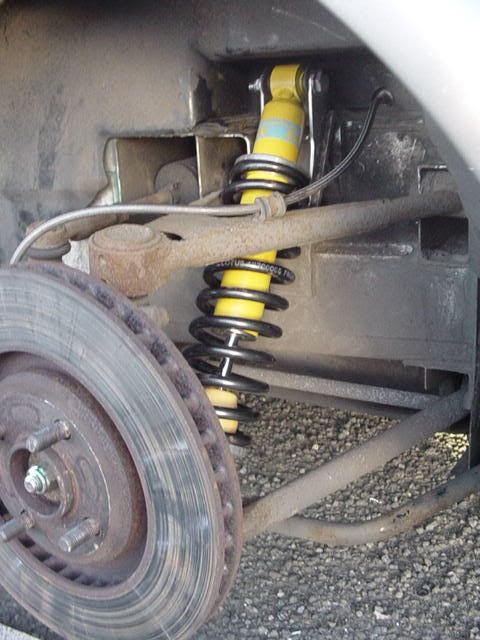

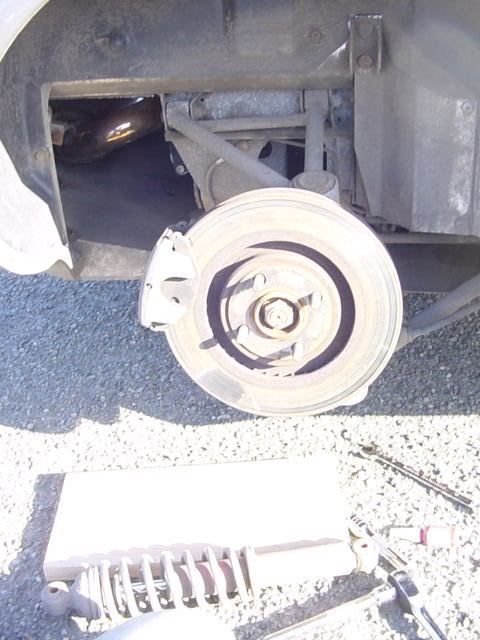

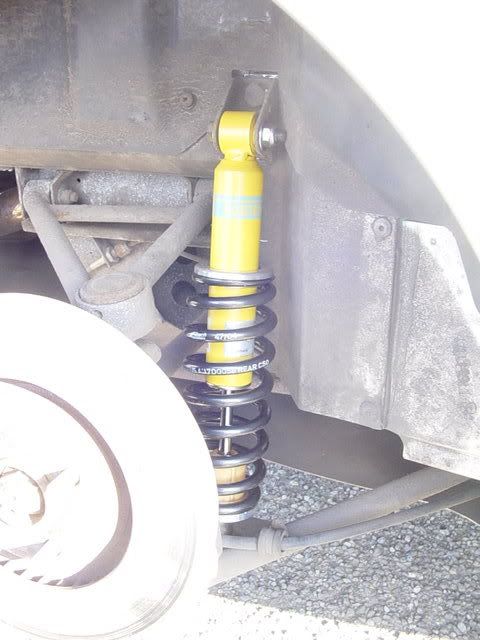

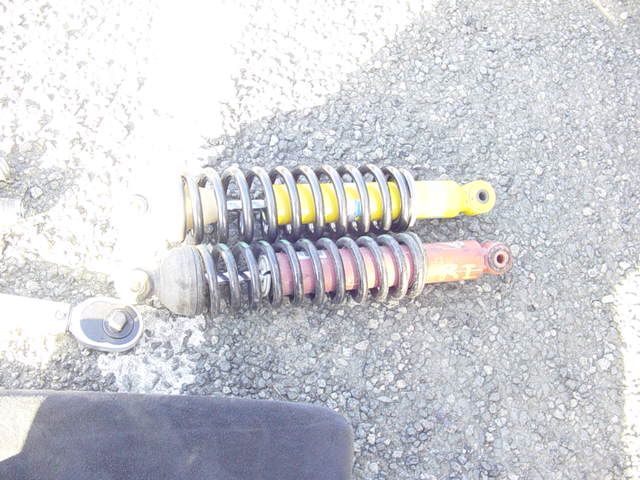

Some pics fomr my install:

[mwmackenzie]

Great wee set instructions Rich! Did you not get rear brackets? To lower the ride height, Billies have 3 settings as std you need to move the circlip under the spring seat on the actual shock body before fitting the springs. Alternativly I think there is a guy on SELOC doing brackets for different height drops too, his name has slipped my mind at the moment..

Mark

[vet111s]

Cheers Rich.
As mark says, was the instructions with regards to the fitting brackets and the ride height that was worrying me

Ali

[Rich H]

I didn't need brackets of the ride height I wanted, 120mm, the brackets are bolt off bolt on unless you have an old S! then the front brackets will require a hole drilling in the front structure. Just bolt up the one that fits and use the bracket as a drill guide. New bolts and nuts use drualac and don't use stainless!

[vet111s]

Cheers for the info rich.

Ali

[Rich H]

Sorry meant I didn't need brackets at the rear the fronts needed them see here:
